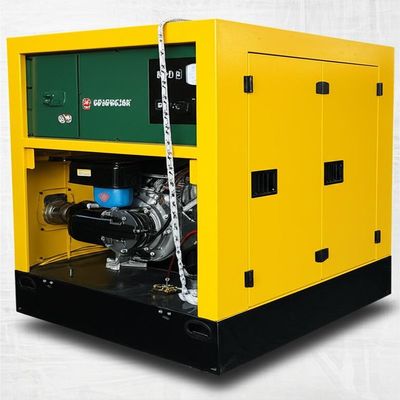

400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

صورة كبيرة :  400A Diesel Welder Generator with Water Cooled System AVR Brushless and Electric Start

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: GENOR POWER
إصدار الشهادات: ISO , CE, CCC
رقم الموديل: أونرول400
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: USD$4139 to USD$7225
تفاصيل التغليف: حزمة خشبية / حالة الخشب الرقائقي
وقت التسليم: في غضون 20 يومًا
شروط الدفع: T/T ، L/C ، Western Union
القدرة على العرض: 200 / مجموعات شهريا
مفصلة وصف المنتج
اسم المنتج: 400A مولد لحام الديزل نوع المحرك: enigne الصناعية الثقيلة
اللحام الحالي: 500 أمبير نظام التبريد: تبريد الماء
نوع الإثارة: AVR فرش فتح الجهد: 80 فولت
فئة الحماية: IP23 START SYSTEM: بداية كهربائية
إبراز:

Water Cooled Diesel Welder Generator,AVR Brushless Diesel Welder Generator,Electric Start Diesel Welder Generator

,

AVR Brushless Diesel Welder Generator

,

Electric Start Diesel Welder Generator

MULTI WELD SYSTEM Twin Holders Diesel Engine Welding Plants 450-500 Amperes

Industrial heavy-duty diesel engine driven welding machine with strong auxiliary generator and mobile trailer. Features advanced inverter soft switch technology, PWM control technology, and negative feedback control technology for excellent dynamic quality and welding performance across full voltage/current regulation range.

Key Specifications
Parameter Specification
Welding Current Range 20A - 400A
Rated Welding Current 450A
Operating Voltage > 36V
No-load Voltage 70V - 90V
Generator Output AVR Brushless Excitation
Frequency 50Hz
Phase Three Phase | Single Phase
Output Voltage/Power AC 380V/15Kw | AC 220V/5Kw
Engine Type 4 stroke, 4 cylinder, direct injection heavy duty diesel
Fuel Diesel
Technical Specifications
Rated welding current (at Pn-60%): ≤ 400A
Rated operating voltage: ≥ 36V
Welding current regulation limits: 60A-400A
No-load voltage: 70V-90V
Fuel tank capacity: 60L-120L
Pump efficiency: ≥ 70%
Auxiliary Power Generator
Power: ≤ 4 kW
Rated voltage (at 50 Hz): ≤ 230V
Engine Details
Type: Diesel
Power: ≥ 30/40 kW/hp
Rotation speed: ≤ 1800 rpm
Cooling: Liquid/air
Climatic version: N1
Trailer Specifications

Chassis designed for operation with vehicles having traction device according to GOST 2349, electrical outlets per GOST 9200, safety chain attachments, and front/rear stops for horizontal positioning.

Included Equipment
  • Ballast rheostat
  • Welding cables, electrode holder, welder's shield
  • "Vector" type cutter (510mm) for steel cutting (3-300mm thickness)
  • Gas and oxygen reducer
  • Propane and oxygen hoses (20m each)
  • Extended maintenance tool set
  • Additional tool box
  • Preheating system for cold starts (below -25°C)
  • Welding site shelters
  • Power tools for edge machining
  • Light alarm system
  • Automatic emergency protection
  • Built-in auxiliary generator (220/380V, 4-7kVA)
  • Night work lamp
  • Tire inflation device
  • Electric fuel level indicator
  • Hour counter
  • Remote start cables
  • Electrode drying device
  • Anti-rollback stops (2 pcs)
  • Socket ONC-VN-1-7/30-P1
  • Spare wheel
